Products

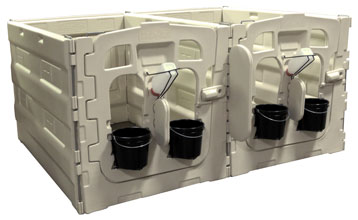

Calf-Tel Pen System
The modular, cost-effective solution for indoor calf raising
Calf-Tel introduced the first free-standing, completely modular, indoor pen system of its kind. While other systems may look similar, the Calf-Tel pen system provides calf raisers with the most versatile, highest labor savings, calf and calf manager friendly indoor pen system available. Calf-Tel Pens are backed by the longest track record of success on the market.
BRAND NEW PEN FRONT! With Calf-Tel Exclusive Features:
- Adjustable buckets – independent of door frame
- • Saves on labor – no need to move entire frame
- • Eliminates gap at bottom for bedding to escape
- Optional feed pail dividers reduces feed waste
- Wider door for improved access and ventilation
- Higher standard pail height
- Easily mount an optional nipple pail
- New pail holders limit calves from knocking out buckets
- Improved handle for increased strength
- Easy to set up, configure, expand, and truly only requires one person
- Easy to sanitize to ensure ultimate calf health
- Rugged, long-lasting, solid steel hardware connectors take only seconds to configure
- Pen dividers and solid side panels to keep calves separated
- Interlocks back-to-back and side-to-side to easily configure to your facility
- Superior ventilation with standard adjustable rear venting
- Separated feed buckets – keeps feed dry
- Free standing and modular – does not require permanent installation
- Steel reinforced door frame – the only steel reinforced plastic door of its kind
- Optional accessories and components – adapts to all management styles and practices:
- • Airmax Back for maximum ventilation
- • Bottle holders
- • Feed pail dividers
- • Feed Opening Restrictor

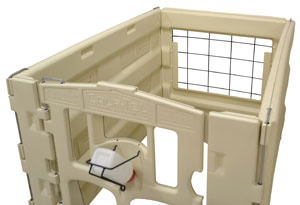

AirMax Pen Back
The new and highly innovative AirMax pen back features a nearly full-open back, with a molded-in sturdy wire screen providing more ventilation to enhance calf comfort and long-term health. The AirMax also comes with a cover that slides easily into place for added warmth in extreme cold weather conditions.
- Fits existing Calf-Tel pen system
- Rugged steel wire screen
- Increases calf comfort and long-term health
- When using the the AirMax back, the pen system can only be configured side-by-side.
The industry’s #1 choice for calf housing, indoors or out
Calf-Tel calf housing systems use a unique thermoforming process along with the highest quality polyethylene plastic to achieve unmatched strength, durability and longevity. Calf-Tel family of products offers calf raisers around the world simply the best and most cost effective system for raising healthy calves.
Superior Airflow & Ventilation
The most innovative ventilation features in the industry
Sun & UV Protection
Totally opaque - ultraviolet rays do not penetrate Calf-Tel housing systems
Strength & Durability
Nearly indestructible and the most durable in the industry
Health & Bio-Security
The polymer material does not absorb or promote bacterial growth
Economy & Efficiency
Decreased labor, treatment and veterinarian costs
More money in your pocket!
Adjustable Venting
Rugged, easy to use steel L-rods
Optional Feed Divider
Standard Rugged Pen Divider
Adjustable Bucket Height – No Need To Move Door Frame
Nearly full-open back for more ventilation
Calf-Tel Pen System - Site Layout
Layout Configurations
Space requirements will vary depending on individual configurations. When using the AirMax, the pen system can only be configured side-by-side.
- Pen Width 4 ft. (122cm)
- Pen Lengths 4.5 ft. (135cm) 6 ft. (183cm) or 7 ft. (214cm)
Pen Component Weights
|
| Component Kit * | 7.8 lbs. | 4 kg. |
| Pen Front - Original | 28 lbs. | 13 kg. |
| Pen Front - 2012 | 24 lbs. | 11 kg. |
| Pen Back - Standard | 19 lbs. | 9 kg. |
| Pen Back - AirMax | 21 lbs. | 10 kg. |
| 4.5" Side Panel ** | 26 lbs. | 12 kg. |
| 6' Side Panel** | 36 lbs. | 16 kg. |
| 7' Side Panel ** | 40 lbs. | 18 kg. |
*Component Kit includes: handle (and hardware), two pail holders, two pails (choice of black or white), and pen divider.
**L-Rods included in the Pen Sides
Assembled Pen Dimensions
|
| Width | 4’ | 122cm |
| Lengths Available | 4’5”, 6‘, 7‘ | 135cm, 183cm, 214cm |
| Height | 45" | 114cm |
10 Year Limited Warranty!
At Hampel Corp., our products are built to last. We proudly stand behind our craftsmanship. Contact us for the complete details.
